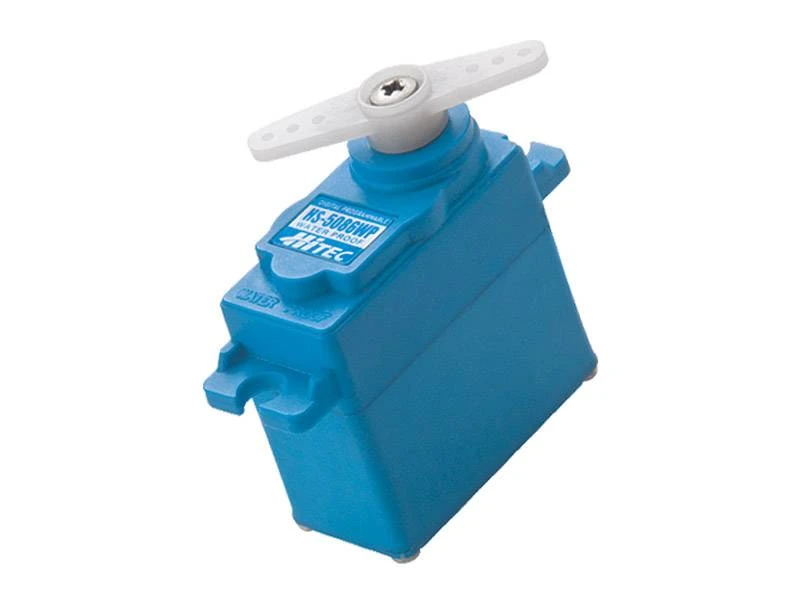

HiTEC HS-5086WP Digital Waterproof Micro Servo

The HS-5086WP is the smallest in Hitec’s class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry’s first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings.

Features

• Metal Gear with MP First Gear
• Top Ball Bearings
• 3-Pole Cored Ferrite Motor
• Industry’s First IP67-Rated Waterproof Case
• * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M

Programmable Circuit

• Programmable Functions
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Accessories

• Metal Gear Set
• Plastic Case Set
• Applicable Horns

Performance Specifications

• Operating Voltage Range (Volts DC)4.8V ~ 6.0V
• Speed (Second @ 60°)0.18 ~ 0.15
• Maximum Torque Range oz. / in.42 ~ 50
• Maximum Torque Range kg. / cm.3.0 ~ 3.6
• Current Draw at Idle3 mA
• No Load Operating Current Draw280 mA
• Stall Current Draw1,800 mA
• Dead Band Width2 µs

Physical Specifications

• Dimensions (Inches)1.22 x 0.60 x 1.22
• Dimensions (Metric)31.0 x 15.2 x 31.0
• Weight (Ounces)1.00
• Weight (Gram)28.5
• Circuit TypeG1 Programable Digital
• Motor Type3 Pole Metal Brush Ferrite
• Gear MaterialMetal
• Bearing TypeTop Ball Bearing
• Output Shaft (type / Ømm)Standard 24
• Case MaterialPlastic
• Dust / Water ResistanceIP 67
• Connector Gauge (AWG) / Strand Count25 / 40
• Radio Control Applications
• Parkflyer< 50 oz.
• Sport Plane42 – 50 oz.
• Sailplane<2 meter/DLG
• 3D PerformanceN / A
• ScaleN / A
• Electric HelicopterN / A
• Gas HelicopterN / A
• On Road1/6th
• Monster TruckN / A
• Buggies1/6th
• TruggiesN / A
• Short Course / Truck1/6th
• CrawlersN / A
• Sail BoatN / A
• Power Boat 1/6th
