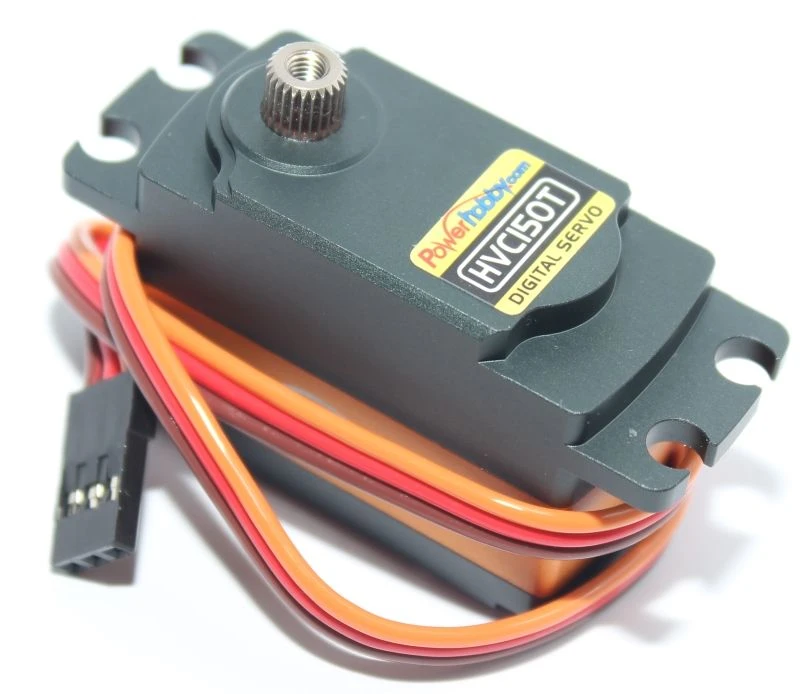

Powerhobby DHVC150T High Torque HV Digital Titanium Gear Low Profile Servo

This is Powerhobby DHVC150T Digital High Torque Titanium Gear High. With titanium gears, dual ball bearings and a heavy-duty low-profile aluminum housing, the Powerhobby DHVC150T digital coreless servo provides good speed and torque while it’s compact size allows use in applications where a standard servo will not fit.

SPECIFICATIONS:

• Motor Type: Coreless
• Case material: Aluminum Whole Case
• Gear material: Titanium
• Bearing Type: 2BB
• Weight: 60g / 2.1oz
• Dimension: 40*20*30mm³ /1.6*0.8*1.2 in³
• Operation Voltage: 6-7.4V
• Torque: 13kg-cm/6.0V; 15kg-cm/7.4V, 179oz-in/6.0V; 207oz-in/7.4V
• Speed: 0.12sec/60°/6.0V; 0.11sec/60°/7.4V
• Pulse Width: 900-2100
• Dead band width: 2μs
• Interface Type: JR / FT / JST1.5 / JST2.0 / Other
• Operating Temperature: -20 to 60 centigrade
• Splining: 25T
• Application:
• Ideal for 1: 8/1:10 Car Steering; 1: 8/1:10 Touring Car;
• Airplane landing gear

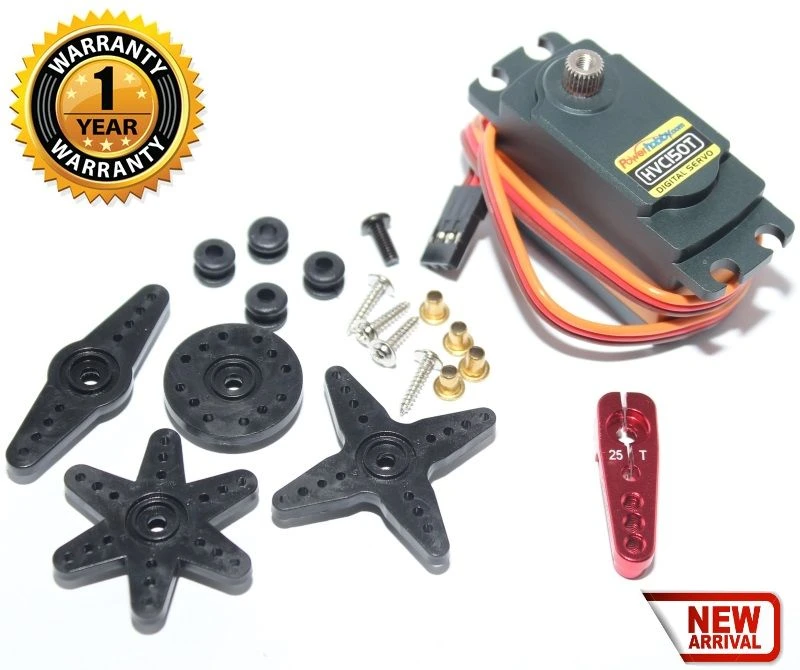

INCLUDES:

• One servo with hardware
• 25t Aluminum Servo horn
