SkyRC 500036-01 Corner Weight Scale System with 4 Scales and Bluetooth

RC cars run off the track, tip over, run with tires wore eccentric from time to time. These are the typical results of incorrect CG(Center of Gravity) due to the unbalanced four wheels. Uneven wheel weight distribution will cause the car to sway more in one direction than others. In this circumstance, the car will run unstable, difficult to control!

The enhanced SkyRC SCWS2000 can help RC drivers easily measure and view the RC car’s corner weight distribution through the App. With the accuracy of 1g, RC drivers can precisely adjust their car’s weight at each corner to the best balance to win the race.

Even the slightest difference in weight has a significant difference for RC hobbyists when it comes to the race’s performance and the car’s condition! High-quality aluminum with good toughness is selected as the sensor rebound material. Through the rigid and harsh manufacturing process, we created a high-precision I-shaped sensor. To improve the overall accuracy, the measurement algorithm is enhanced from the predecessor: the precision can be obtained in the shortest time. The default unit is Gram, and switching to Ounce is also available! When inaccuracy is found, the customized in-app program can get the calibration done quickly by tapping the screen three times.

This conner weighting system is empowered by the latest Bluetooth 5.0 chip, which results in faster and more stable connection. When connected with the phone, the last century segment LED as the predecessor is enhanced the intuitive display in full screen!

SkyRC smart weighing system is small and portable in size. It can accurately measure the weight distribution at the racing car’s four corners. So RC racer can quickly adjust the weight at each corner to the best balance effect and win the race.

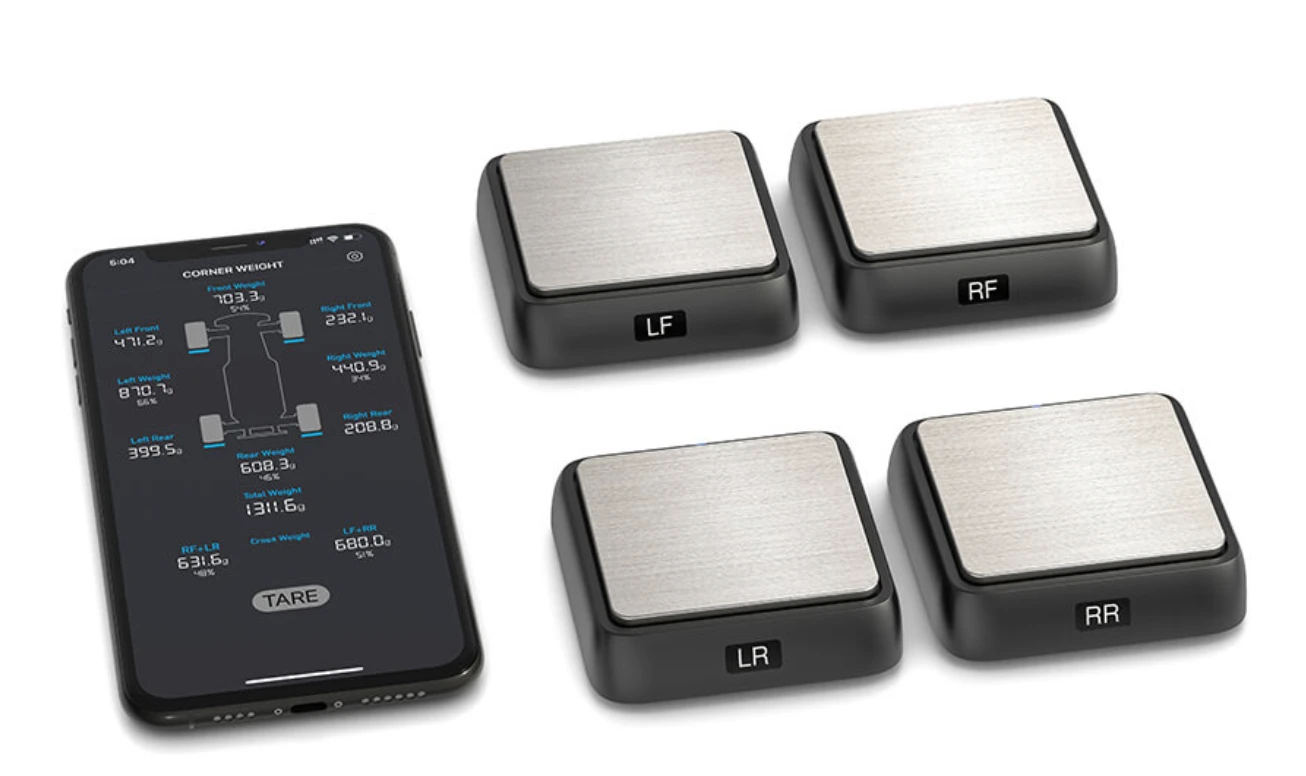

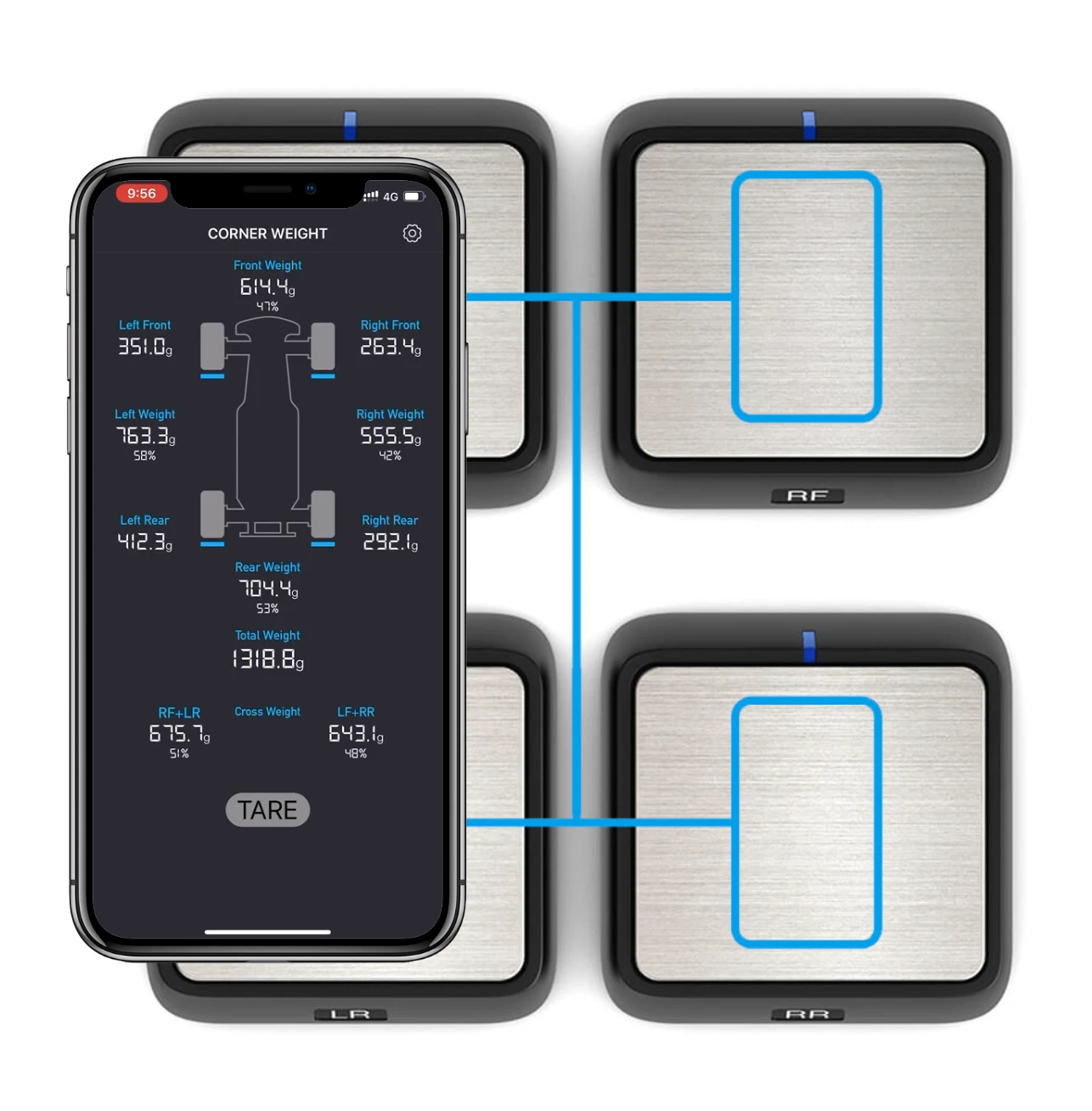

The App simulates practical scenarios to b intuitive and straightforward. The diagonal wheels are highlighted contrastingly in orange to indicate the selection. This is exactly the RC hobbyists’ paint point when balancing and distributing the weight! The weight and protocol data are transmitted to the mobile App in real-time via Bluetooth. The APP can set each scale by coordinate and save the real-time weight at the respective corner. The total diagonal weight is automatically calculated on the go!

The native emphasis on the ultra-low power consumption of Bluetooth 5.0 and our proprietary protocol get a CR2450 lithium coin battery to deliver the long-lasting, dependable performance of continuous 30 hours.

FEATURES:

• For: 1/10 1/12 1/8 RC Drift / Touring
• Material: Plastic
• Color: Black
• App-enabled and data display in realtime via Bluetooth
• Designed for drift, touring cars
• Unit switchable between gram and oz.
• Powered by 4 x coin & button batteries.
• Measure the car’s corner weight, front and rear distribution and make adjustment if necessary.
• The maximum weight limit for each scale is 2000 grams ( total 8000 grams )
• Accurate measurement in 0.1g increments ( equivalent to 0.01 oz )
• BLE 5.0: Faster Connectivity and higher performance
• Long-lasting power on coin battery

SPECIFICATIONS:

• Dimension: 68x68x22.5mm
• Net weight of each scale: 70g
• Rated Voltage: 2.6V-3.6V
• Rated Current: <10mA@DC3V
• Battery: CR2450 3V Lithium Coin Battery
• Maximum weight of each scale: 2000g
• Tolerance: ±0.1g / 0.1oz
• Resolution: ±0.1g / 0.01oz
