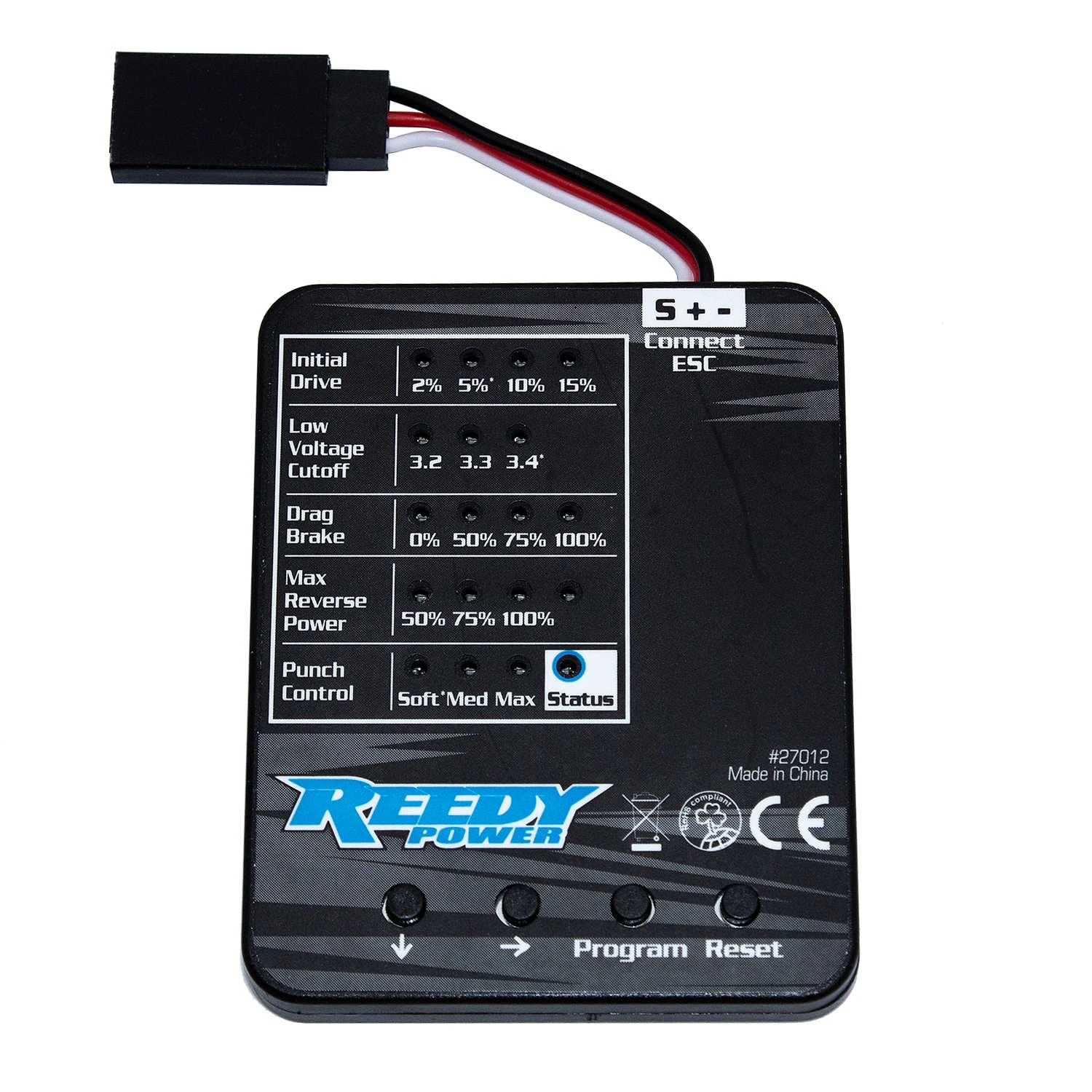

Team Associated 27034 Reedy SC480X Brushed Crawler ESC Program Card

The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using this optional Program Card. The following settings can be changed using the Program Card:

• Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range.
• Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery.
• Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position.
• Max Reverse Power: The maximum reverse speed allowed relative to the forward speed.
• Punch Control: The aggressiveness of the application of throttle.

SPECIFICATIONS:

• Initial Drive:2%, 5%*, 10%, 15%
• Low Voltage Cutoff (V/cell):3.2, 3.3, 3.4*
• Drag Brake:0%, 50%, 75%, 100%*
• Max Reverse Power:50%, 75%*, 100%
• Punch Control:Soft*, Medium, Strong

This part fits the following other parts:

• #27011 – Reedy SC480X Brushed Crawler ESC

*Default setting
